how to use a carpenter square to layout wall studs

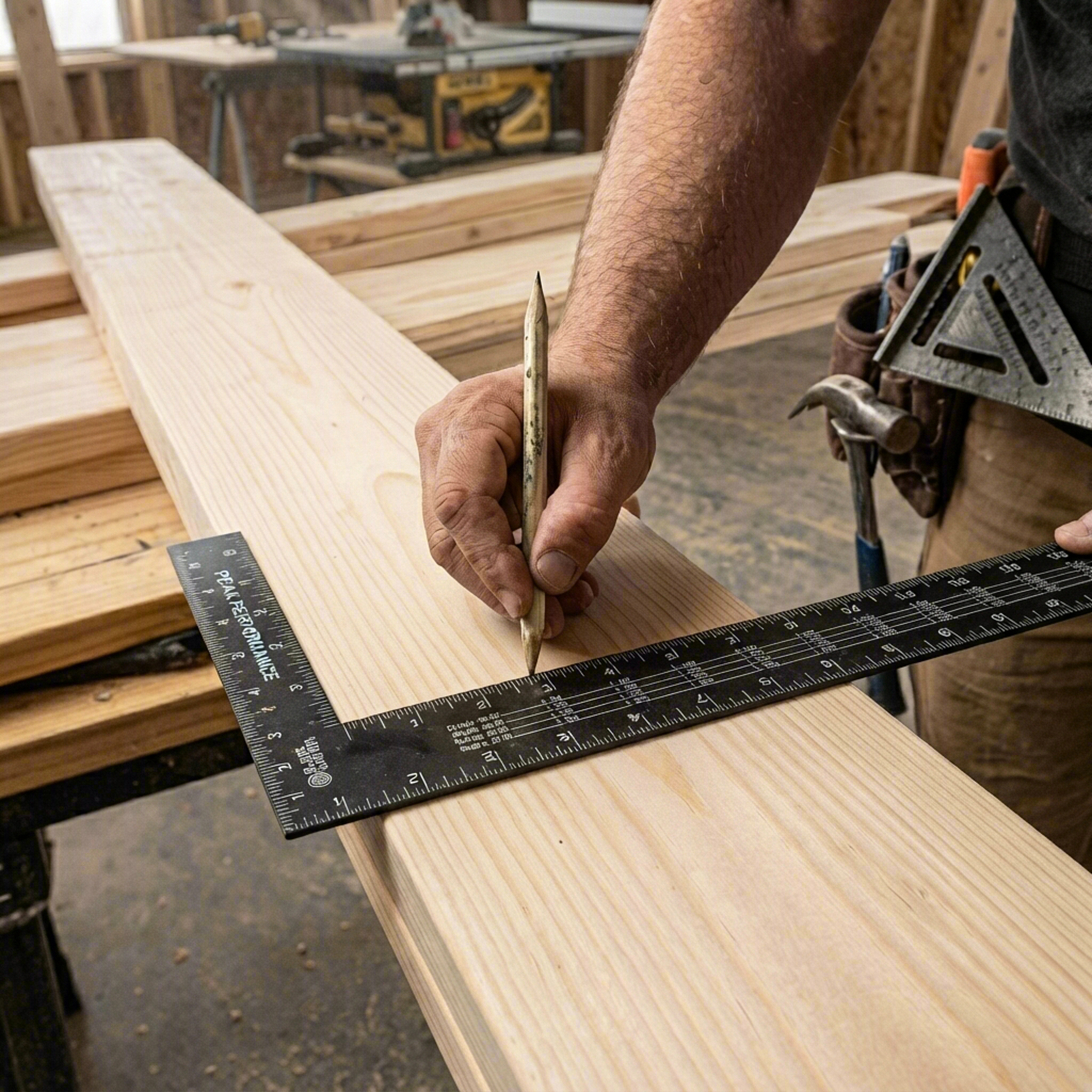

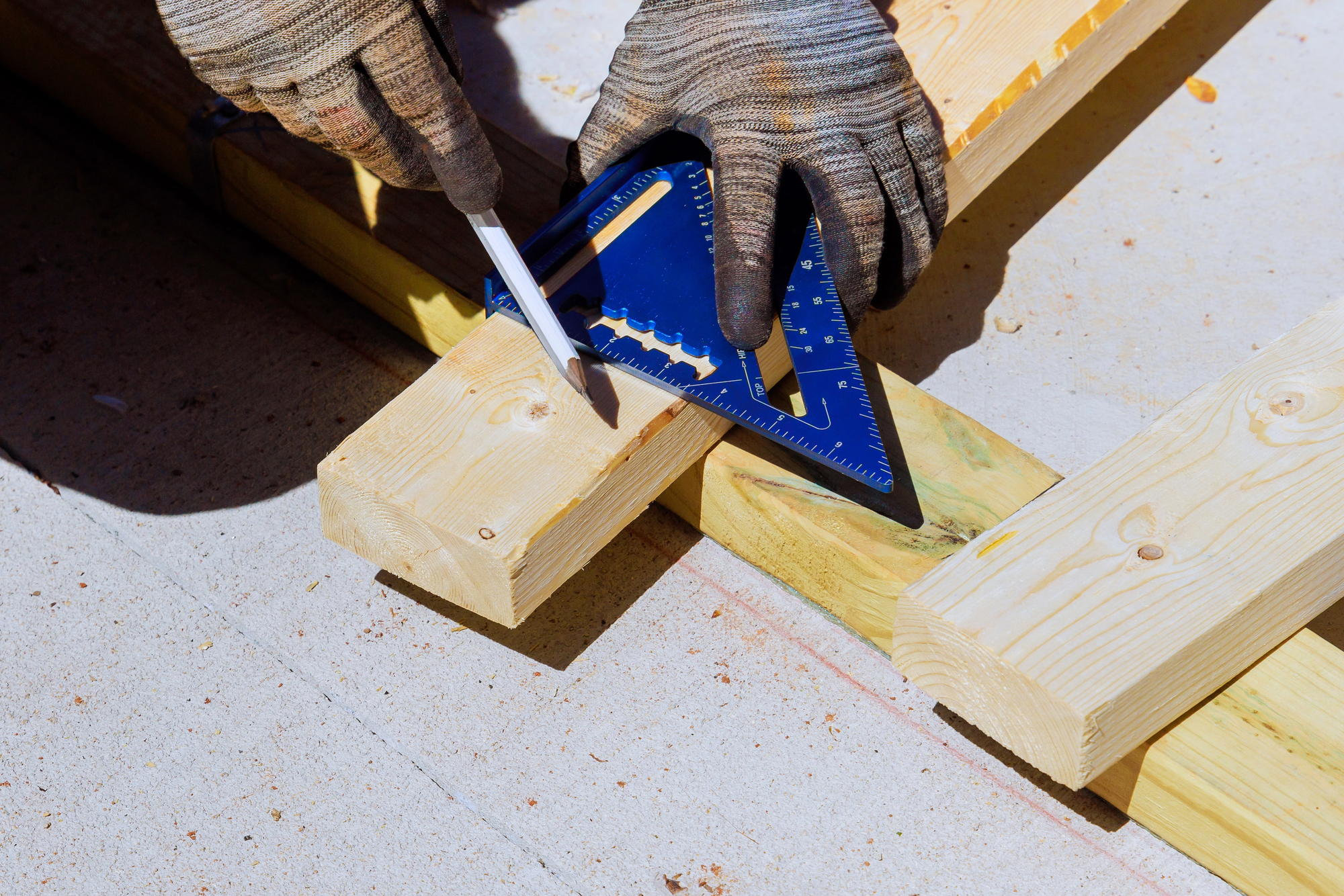

Learning how to use a carpenter square to layout wall studs so they are cut perfectly will help you build strong walls that fit snuggly in place. Squaring up your plates and studs is the difference between a straight house and a structurally flawed one. Master the essential framing layouts, check your 90-degree angles instantly, and learn how to use a standard metal framer's square like a seasoned carpentry pro.
If your foundation or wall plates aren't perfectly square from day one, every single step that follows—from hanging drywall to installing roof rafters—becomes an absolute nightmare. Mastering how to use a carpenter square to layout wall studs is the ultimate secret weapon for the solo owner-builder.

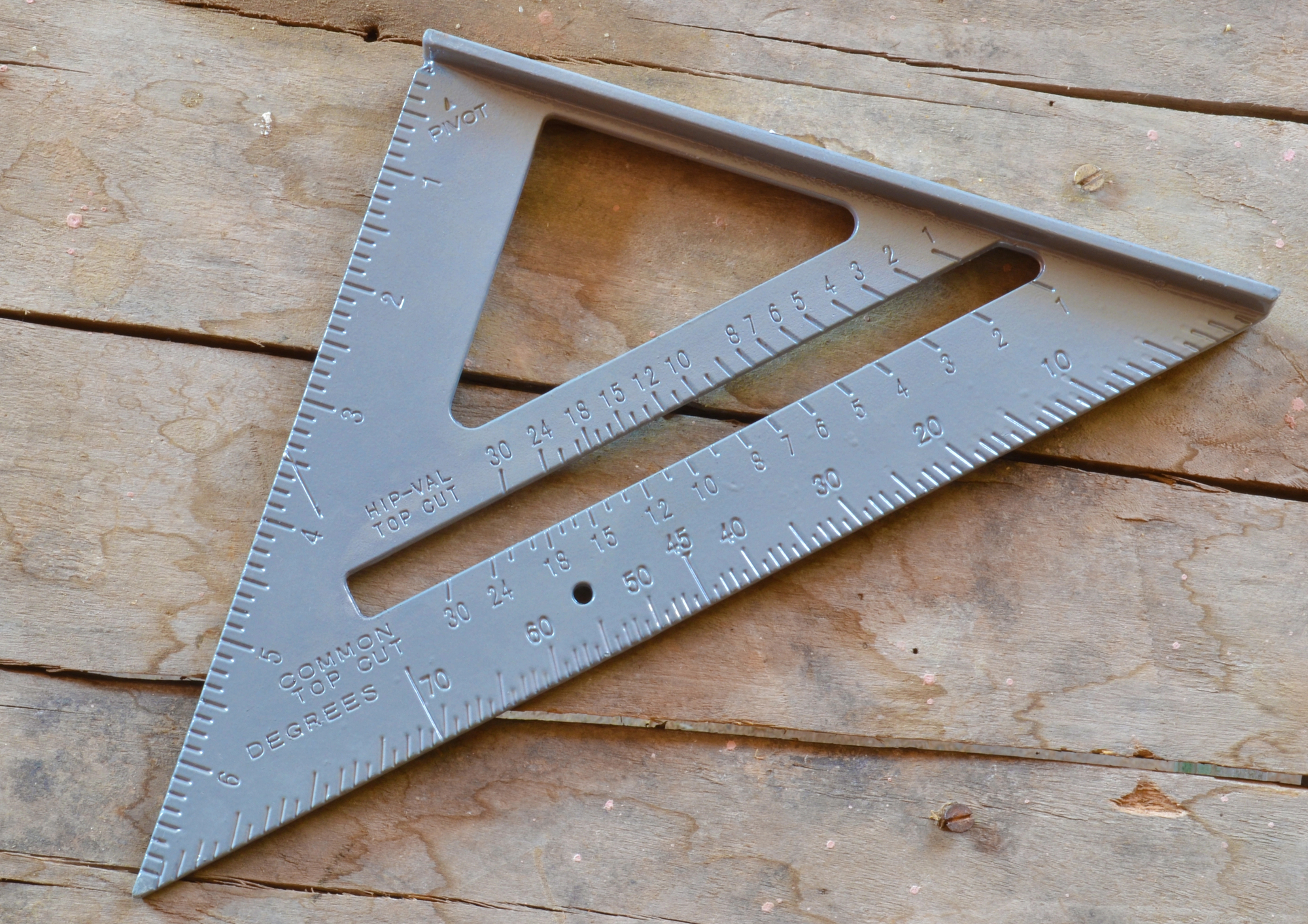

This simple piece of L-shaped metal is actually a powerhouse calculator that lets you instantly verify 90-degree angles, mark exact 16-inch on-center spacings, and calculate rafters. The calibration simplifies the math and shows you exactly how to read the scales to keep your walls perfectly true.
Laser-Etched Visibility: Stamped or printed numbers fade in the sun. It's best to have deeply laser-etched or high-contrast engraved gradients that are legible in high-glare sunlight or mud.
Anodized Corrosion Proofing: The square must be treated with a protective coating to prevent rust or oxidization when left out in rain or early morning dew.
Heel Squareness Tolerance: Made with exSquare has outer and inner 90-degree angles against a calibrated machinist block; even a 1/64-inch variance over 12 inches fails.
how to use a carpenter square to layout wall studs and floor joists

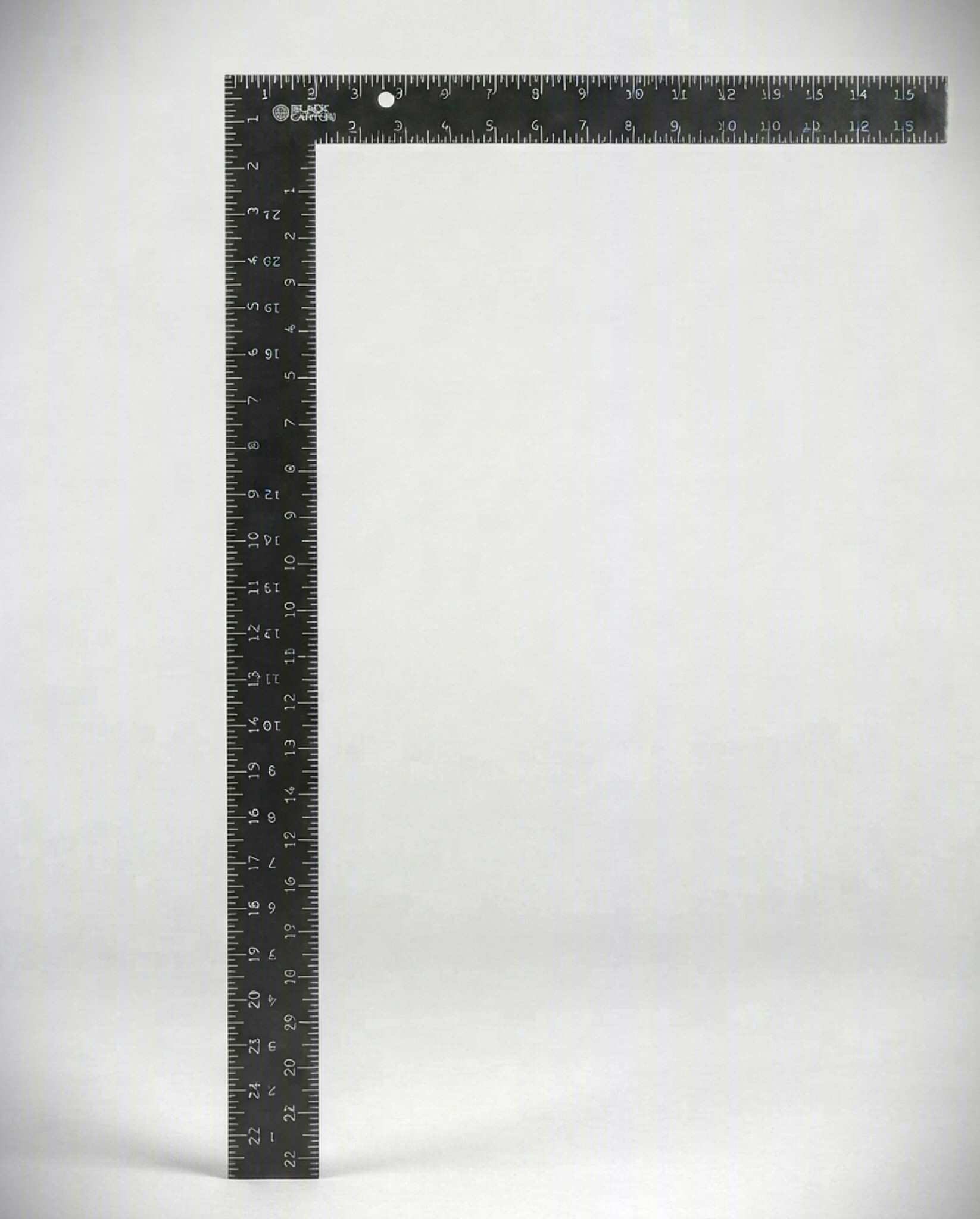

Next to the smaller carpenters square is a larger square used for measuring floor joists and other lumber when you need to get an accurate ninety degree angle cut, but the smaller square is too small.
The same requirements for buying a good quality Carpenters square applies to the larger steel Square. This will be used a lot through your project so get a square that has etched measurements that won't get rubbed off with heavy use.

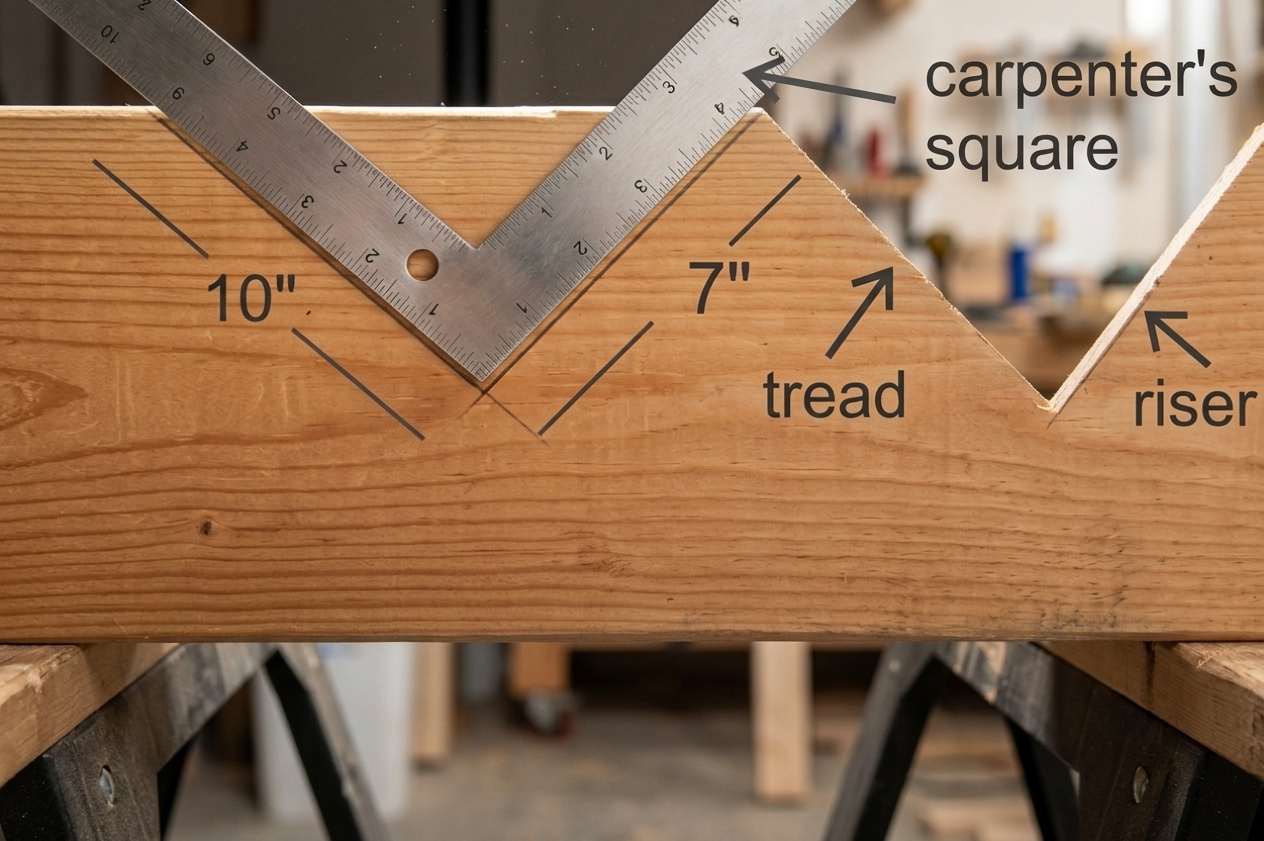

It will be your "go-to" square for most of the foundation and floor joists work. It will also be used frequently while measuring and cutting headers for windows and doors. It's also a critical asset for marking stair stringers if you build a second story home.
Stair stringers have to be exact and the steel square is the perfect tool to get that measurement correct.
